2. Steel Fabrication & Surface Protection
2.1 Material Standards
- Minimum steel grade: S235JR or S355
- Fabrication according to EN 1090-1 and EN 1090-2
2.2 Welding
- Welding in compliance with ISO 3834
- Full penetration continuous welding at critical joints
2.3 Galvanization
- Complete hot-dip galvanization
- Coating thickness: 80–100 microns
2.4 Painting (Optional)
- Electrostatic powder coating
- UV-resistant, minimum 10-year durability
1.Product Information

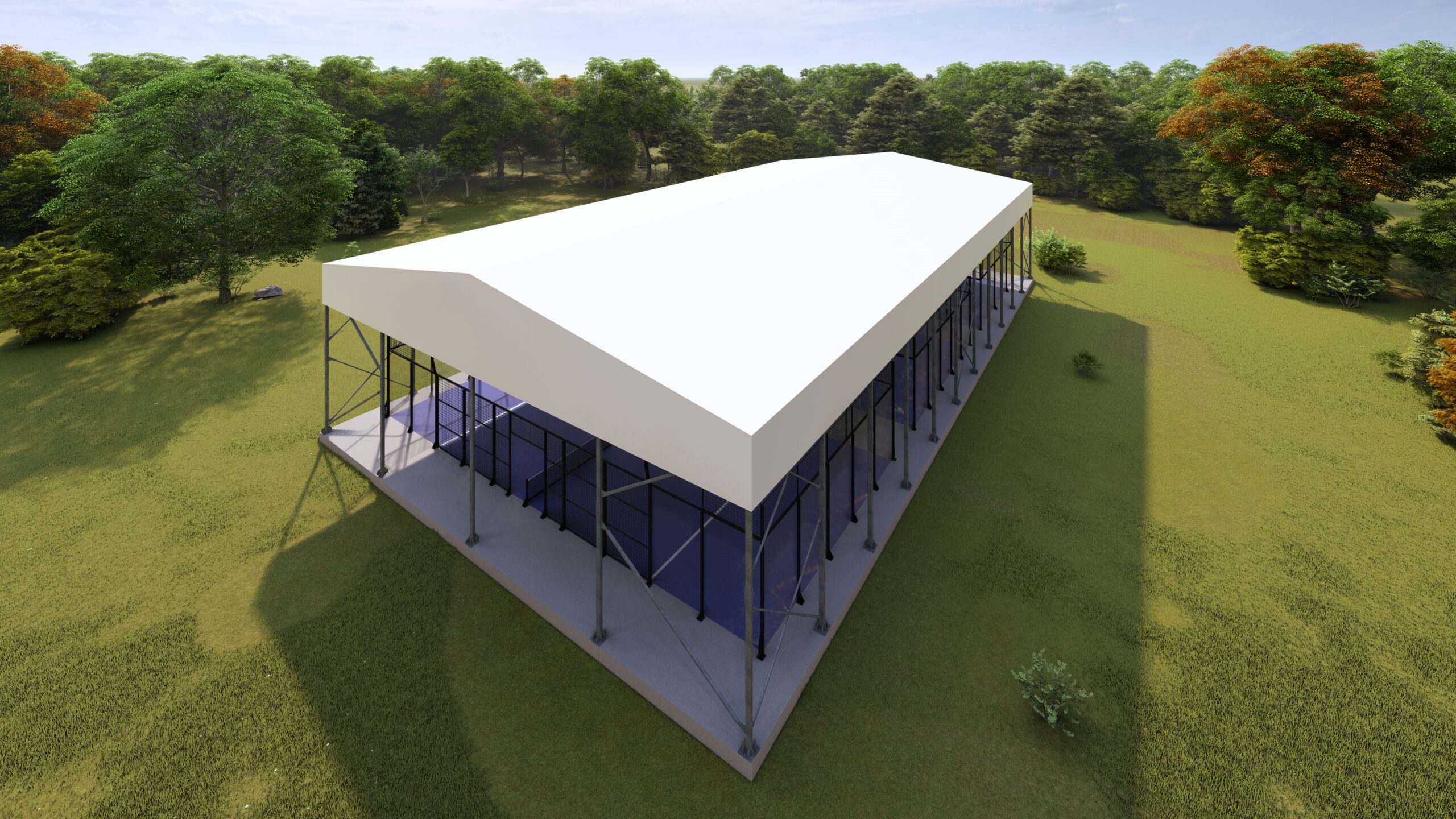

Product Name: Roof Top Canopy
Dimensions: 22 m Length × 12 m Width
Side Membrane Layer: Single Layer
Installation: Not Included
Winter Discount: Applicable for a minimum of 4 covered units
Padel Court Dimensions:
- Width: 12 m
- Length: 22 m
- Useful Height: 7–7.4 m
- Center Height: minimum 9.40 m
4. Customer Responsibilities (Paragraph)
The customer is responsible for foundation works, static verification, and obtaining all licenses and permits. The installation area must be flat, level, obstacle-free, and accessible for heavy machinery. The customer must provide 220V/380V electricity during installation and ensure the safety and protection of all materials on-site. Any delays or issues due to unsuitable foundations, slopes, or missing preparations may result in additional costs. Waste disposal, site cleaning, and material transport within the site are also the customer’s responsibility.
3. Included & Optional Features
Feature
Included
Optional
Hot-dip galvanized steel structure
✔
–
Anti-corrosion painted metal structure
–
✔
Main load-bearing steel structure
✔
–
PVC roof membrane
✔
–
Executive project & foundation drawings
✔
–
Technical report (Snow/Wind/Earthquake)
✔
–
Snow load resistance (90 kg/m²)
✔
–
On-site inspection
❌
–

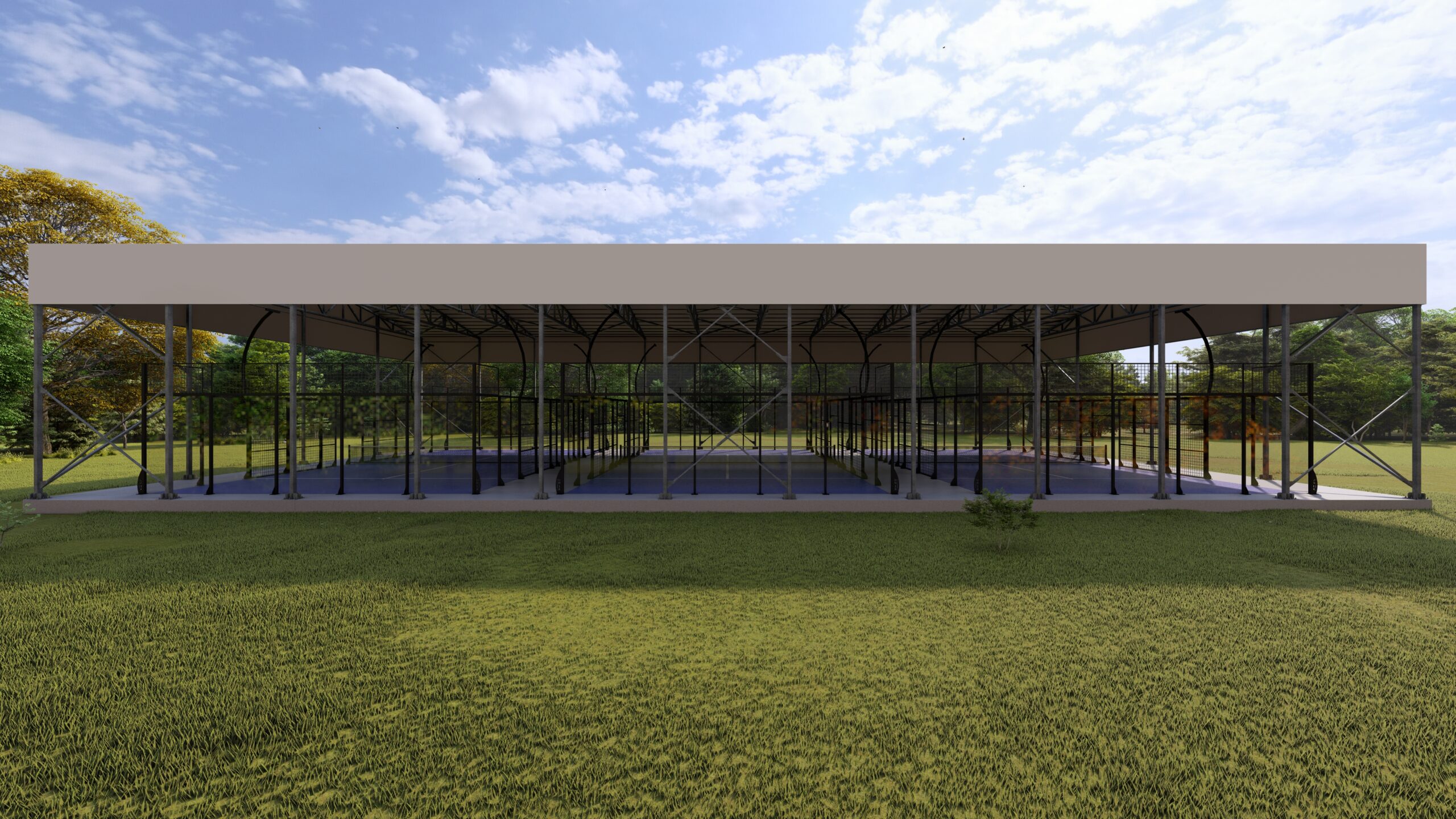

5. HALF CANOPY ROOF — TECHNICAL SPECIFICATIONS
Category
Technical Value
Width
12 m
Length
22 m
Side Height
7 – 7.4 m
Center Height
9.2 – 9.9 m
Main Columns
150×100 mm – S355 steel
Connection Profiles
80×60 mm – EN 1991-1-4 compliant

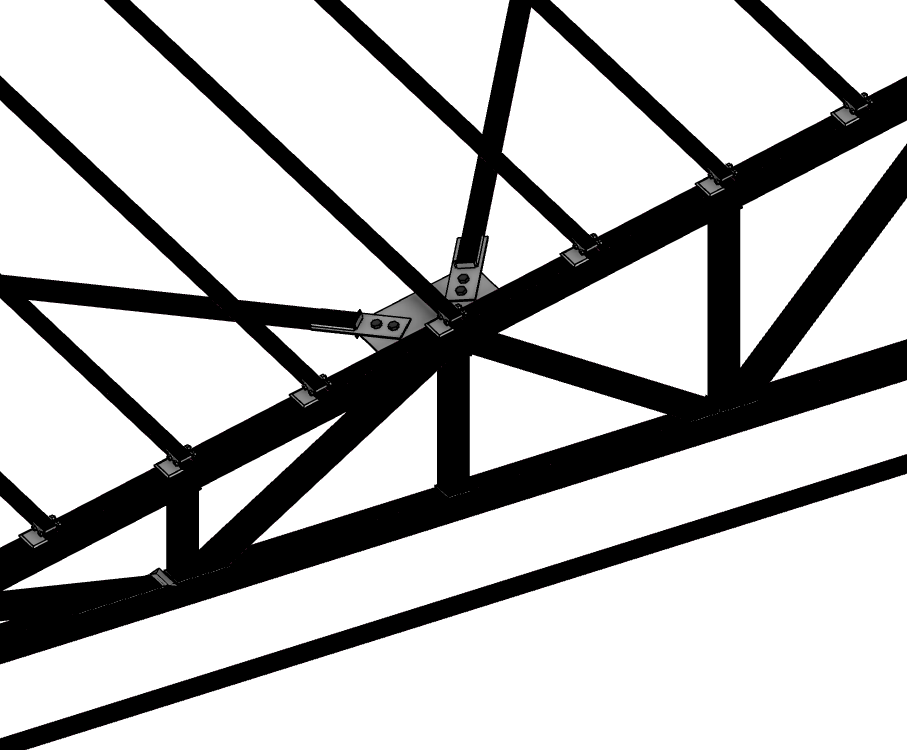

Roof Beams
120×80×3 mm – S355 steel
Snow Load
90 kg/m² (EN 1991-1-3)
Wind Resistance
110 km/h (EN 1991-1-4)
Rain Load
60 m³/m²
Static Approvals
Certified by TÜV Germany
Galvanization
80–100 µm – EN ISO 1461
Service Life
30–50 years
Warranty
10 years steel / 15 years galvanization
Membrane
1100 g/m² PVC – UV & fire resistant
